EB Vogir

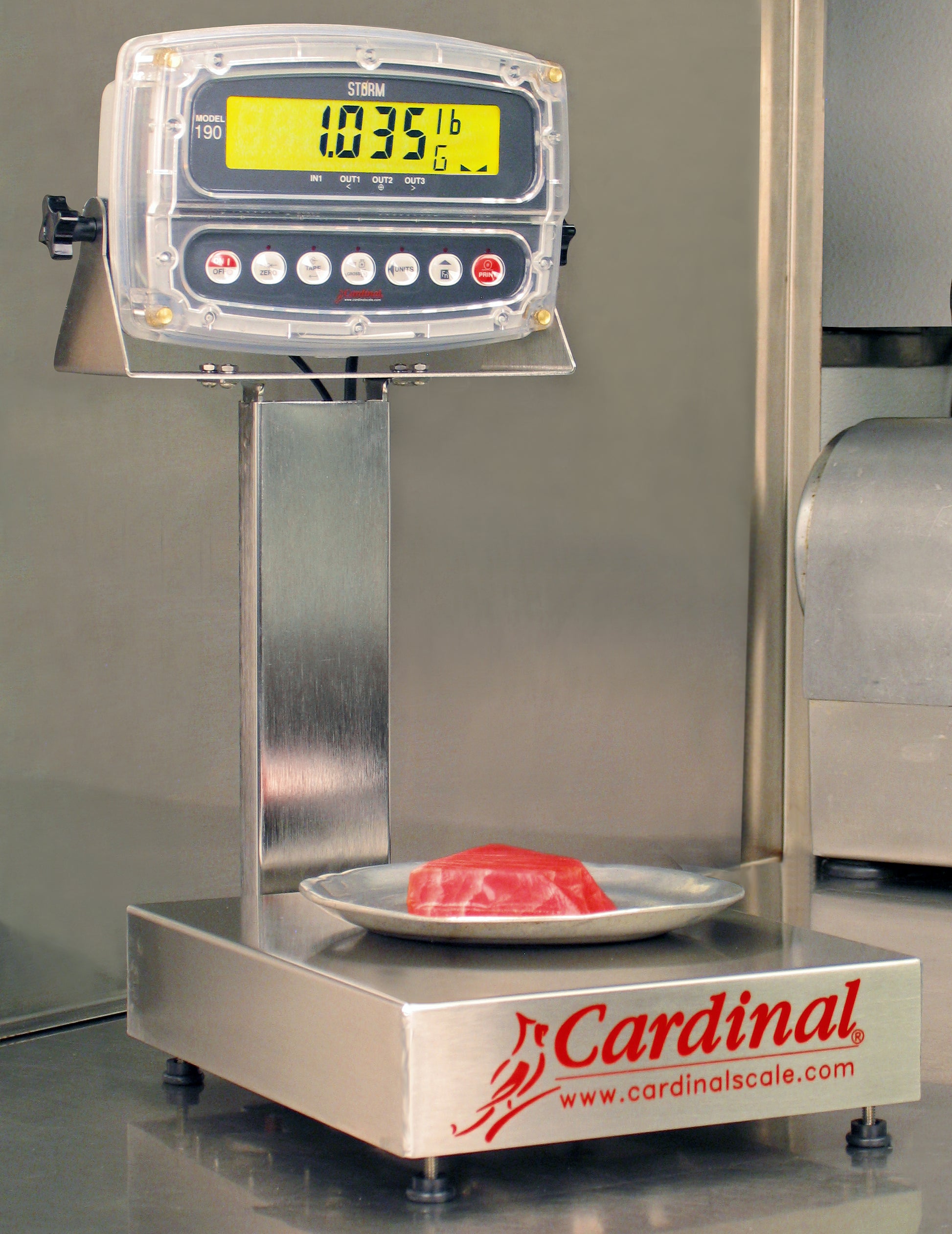

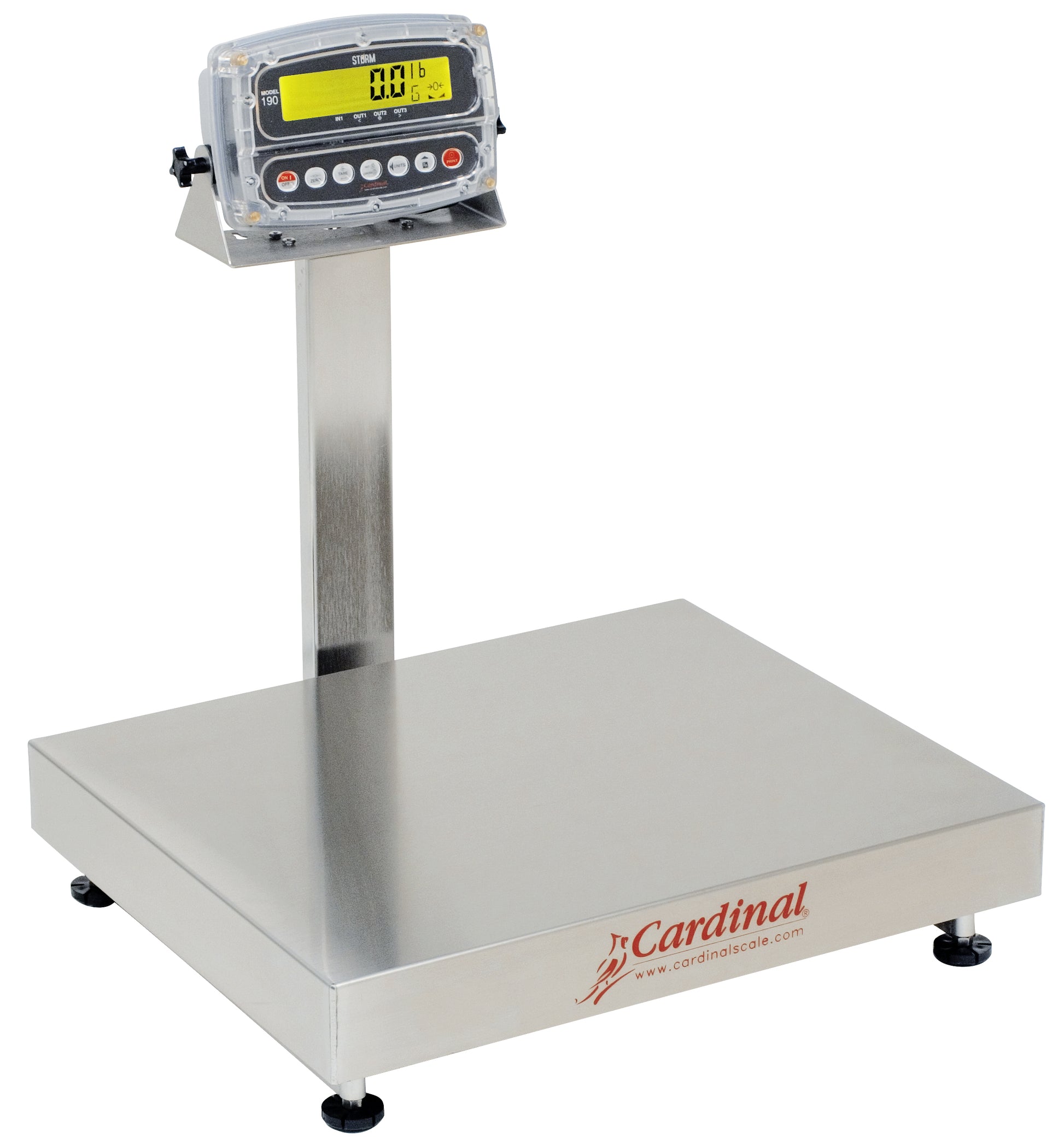

EB-190 bekkjarvogirnar frá Cardinal Scale er búin fjölhæfum 190 Storm aflestrarhausum.

Aflestrarhausinn er höggþolinn og varinn gegn beittum hlutum eins og skærum og hnífum, sem gerir hann sérstaklega hentugan fyrir matvælavinnslu og pökkun, lyfjaframleiðslu, endurvinnslu og efnavinnslu.

Vigtarpallur og stöng eru úr ryðfríu stáli sem tryggir áreiðanleika í daglegri notkun. Aðrir eiginleikar eru snertihnappar, 1 tommu (25 mm) háar, skýrar LCD tölur, innbyggt RS232 samskiptatengi, ColorZONE vigtunarstýring og fjölhæfar orkulausnir.

ColorZONE auðveldar tímastjórnun í vigtunarferlum með skæru skjái sem breytir sjálfkrafa um lit þegar fyrirfram ákveðnum markþyngdum er náð. Vigtin er löggild af NTEP.

Enclosure Type (Indicator): IP69K-rated polycarbonate
Enclosure Type (scale base): Stainless steel
Display: Six digit, seven segment, 1 in/ 25 mm high backlit LCD
Signal Input Range: 0.5 mV min. to 40 mV max. (with dead load boost)
Operating Temperature: 14 to 104 ºF (-10 to +40 ºC)
Number of Load Cells: 6 each, 350 OHM minimum resistance
Excitation: 5.18 6 each, 350 OHM minimum resistance
Sensitivity (Commercial): 5.18 VDC
Sensitivity (Non-Commercial): 0.15 uV/e
Scale Divisions (Commercial): 100 to 10,000 (Class III/IIIL/IIIHD)
Scale Divisions (Non-Commercial): 100 to 240,000
Internal Resolution: 1 part in 16,777,216
Tare Capacity: Scale capacity
Sample Rate: 1 to 100 samples per second, selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Weighing Units: Pounds, Kilograms, Grams, Ounces
Keypad: Color coded capacitive touch type, 7 keys
Standard I/O: 1 bi-directional RS232
NTEP Approval: 03-031
Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max.
Optional Battery Type (model BP190): Lithium-Ion Rechargeable
Optional Rechargeable Battery Continuous Operation Run Times: Running single load cell - 92 hours with NO backlight / 83 hours with BLUE backlight / 48 hours with RED backlight / 48 hours with PINK backlight / 45 hours with GREEN backlight / 41 hours with YELLOW backlight / Battery life will be extended with SLEEP and AUTO-OFF operation set
Optional Battery Charge Time: 6 hours
