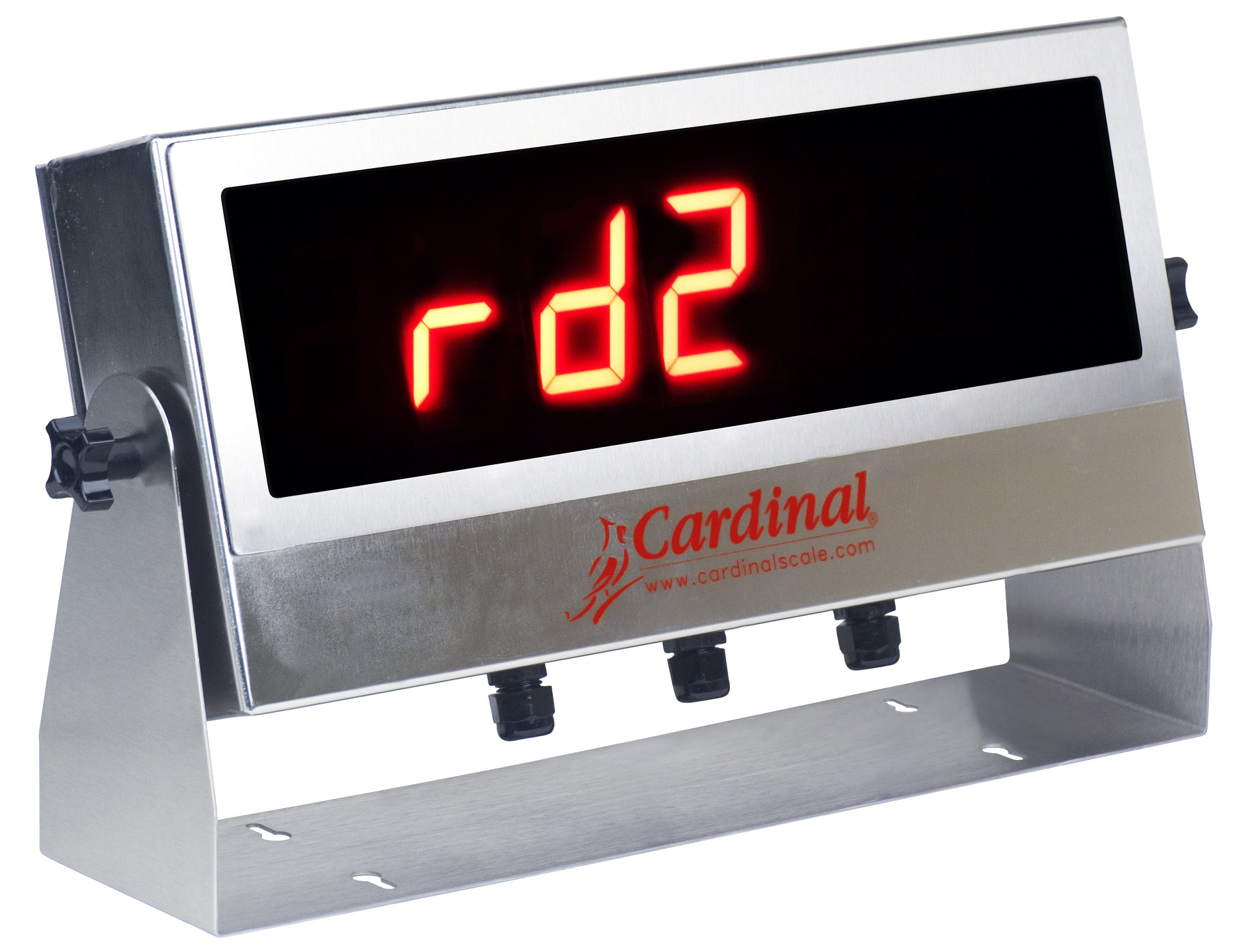

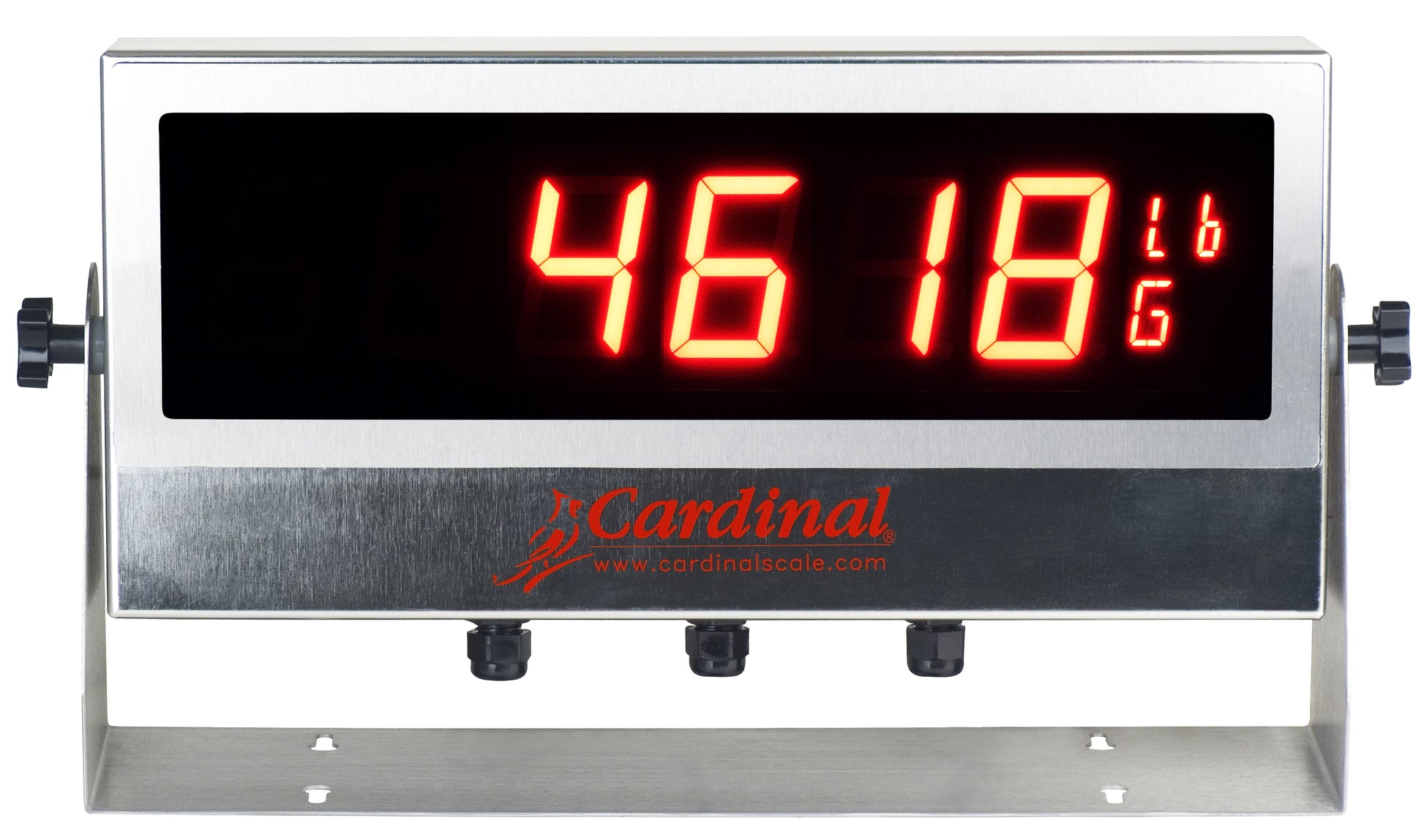

Cardinal RD2 Remote Display

RD2 skjárinn er með sterku IP66 ryðfríu stáli sem veitir vörn gegn vatni og ryki í iðnaðarumhverfi. Hann er með 2,25-tommu/57 mm háan, 6 stafa, 7-segmenta LED skjá með 10 birtustigum sem gera mælingar mjög sýnilegar og auðveldar lestur allt að 150 fetum í burtu. Tvíátta RS232 raðtengi, fjölhæfur festingarbúnaður og þéttur heildarstærð fullkomna eiginleikana á þessum fjarstýrða skjá, sem er tilvalinn fyrir meðalstórar þyngdarsýningar.

Power Requirements: 100 to 240 VAC (50/60 Hz) at 1A Max
Enclosure Type: NEMA 4X/IP66 rated stainless steel outdoor wall-mounted models and indoor desktop models available
Enclosure Size (Stainless Steel): 14.25 in W x 11.5 in H x 5.63 in D / 36.2 cm W x 29.2 cm H x 14.3 cm D
Enclosure Size (Desktop): 14.25 in W x 10.5 in H x 11.75 in D / 36.2 cm W x 26.7 cm H x 29.9 cm D
Enclosure Size (Screenless): 12.25 in W x 5.25 in H x 11.25 in D / 31.1 cm W x 13.3 cm H x 28.6 cm D
Net Weight (Stainless Steel): 8.2 kg
Net Weight (Desktop): 16.8 kg
Net Weight (Screenless): 4.9 kg
Shipping Weight (Stainless Steel):  9 kg
Shipping Weight (Desktop):  7.7 kg
Shipping Weight (Screenless):  5.9 kg
Operating Environment: Temperature: 14 to 104°F (-10 to +40°C) Humidity: 90% non-condensing (maximum)
Display Size: 12.1 in / 307 mm diagonal Active Area: 10.3 in W x 6.4 in H / 261 mm W x 163 mm H
Display Resolution: 1280 x 800 pixel color graphics TFT LCD w/ LED backlight
Transducer Excitation: 10.85 VDC
Signal Input Range: 1.0 mV min. to 33 mV max. (with dead load boost)
Number of Load Cells: 14 each, 350 OHM minimum resistance
Load Cell Cable Length: 1260 feet maximum with sense lines (consult factory for other requirements) 30 feet without sense lines
Division Value: Commercial: 1, 2, or 5 x 10, 1, 0.1, 0.01, and 0.0001 Non-commercial: 0 to 99
Sensitivity: NON-COMMERCIAL: 0.15 uV/e; NTEP: 0.3 uV/e (Class III/IIIL); CANADA: 0.3 uV/e (Class III/IIIHD); OIML: 0.5 uV/e (Class III)
Scale Divisions: NON-COMMERCIAL: 100 to 240,000; NTEP: 100 to 10,000 (Class III/IIIL); CANADA: 100 to 10,000 (Class III/IIIHD); OIML: 100 to 10,000 (Class III), 1,000 (Class III)
Internal Resolution: > 100,000 Counts
Approvals: NTEP, Measurement Canada, OIML, and ETL
Tare Capacity: Six Digits (999,999)
Sample Rate: 1 to 200 samples per second, selectable
Auto Zero Range: 0.5 to 1 through 9 divisions
Weighing Units: Tons, Pounds, Tonnes (Metric Tons), and Kilograms
Keypad: Interactive touchscreen
Standard I/O: (1) Bi-directional RS-232 port, (1) Bi-directional RS-232/20mA port, (1) Bi-directional RS-232/RS485 port, (1) 10/100/1000 Base-T Ethernet, (4) Isolated input/output, (2) USB 3.0 ports, (1) USB 2.0 port, and (1) USB-C port, (1) HDMI port, 802.11b/g/n Wi-Fi, Bluetooth v4.2 BR/EDR/BLE
Country of Origin: Made in USA (of American and global components)
