Cardinal 210 Storm

Cardinal 210 Storm

Regular price 0 ISK
Regular price Sale price 0 ISK
Sale Sold out
Taxes included.

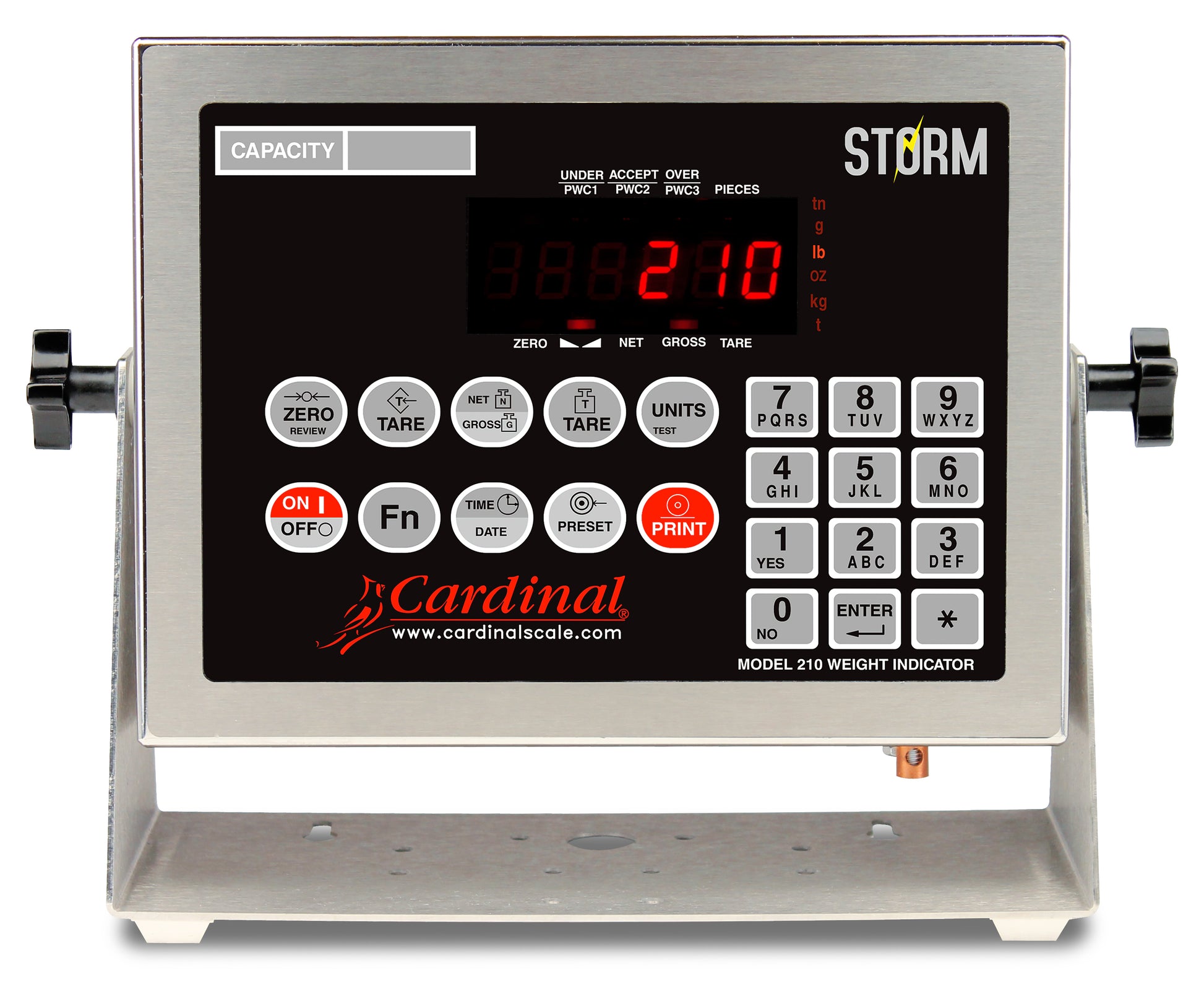

210 þyngdarmælirinn er fullur af eiginleikum, þar á meðal ryðfríu stáli vörn fyrir þvott, auðlesanlegum 0,6 tommu / 15 mm háum björtum rauðum LED skjá sem sýnir þyngd með sex tölustöfum, stafrænum áfyllingarstýringu, 25 einstökum auðkennum (ID), þrýstihnappi fyrir breytingu milli brúttó, tare og nettó.

Fjórar tvíátta RS232 raðtengibrautar veita auðvelda tengingu við fjarstýrða skjái, merkimiða- eða miðaprentara eða tölvur.

210 býður upp á USB-B sem staðal og USB-A sem valfrjálsa tengingu. Harðgerð fjölhæfni gerir 210 fullkominn fyrir vigtunaraðferðir, allt frá borðvogum til vörubílavoga. Styður allt að 8 350-ohm vogarsellur.

Vottað af NTEP, OIML, Measurement Canada, Australian NSC, ETL og CE.



Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max.
Enclosure Type: Stainless steel wall or desk-mount
Enclosure Size: 9.2-in W x 7.5-in H x 3.1-in D (233-mm W x 191-mm H x 79-mm D)
Weight: 8.2 lb (3.7 kg)
Compensated Temperature Range: 14 to 104 ºF (-10 to 40 ºC)
Operating Temperature Range: -10 to 122 ºF (-23 to 50 ºC)
Humidity: 0 to 90% non-condensing
Transducer Excitation: 9.4 VDC
Signal Input Range: 1.0 mV min. to 31 mV max. (with dead load boost)
Number of Load Cells: 8 each 350-ohm load cells
Load Cell Cable Length: 1,500 feet (457 m) maximum (requires the use of sense lines). Consult factory for other requirements. 30 feet (9 m) maximum without sense lines.
Division Value Commercial: 1, 2, or 5 x 10, 1, 0.1, 0.01, 0.001
Division Value Non-commercial: 1 to 99 x 10, 1, 0.1, 0.01, 0.001
Sensitivity Non-commercial: 0.15 uV/e
Sensitivity NTEP: 0.3uV/e (Class III/IIIL)
Sensitivity Canada: 0.3uV/e (Class III/IIIHD)
Sensitivity OIML: 0.5 uV/e (Class III)
Scale Divisions Non-commercial: 100 to 240,000
Scale Divisions NTEP: 500 to 10,000 (Class III/IIIL)
Scale Divisions Canada: 500 to 10,000 (Class III/IIIHD)
Scale Divisions OIML: 500 to 10,000 (Class III)
Internal Resolution: 1 part in 16,777,216
Tare Capacity: Scale Capacity
Sample Rate: 1 to 100 samples per second, selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Weighing Units: Tons, Pounds, Pounds-Ounces, Ounces, Metric Tons, Kilograms, Grams
Keypad: Color-coded membrane type, 22 keys
Standard I/O: 4 ea serial I/O ports configured as 1 ea 20mA output-only ports (uses one of the four RS-232 ports), 1 ea bi-directional 20mA port (uses one of the four RS-232 ports), and 1 ea USB port (uses one of the four RS-232 ports), plus 8 ea remote isolated inputs and outputs
Display: Six-digit, seven-segment, 0.6-in (15-mm) high LED

View full details
